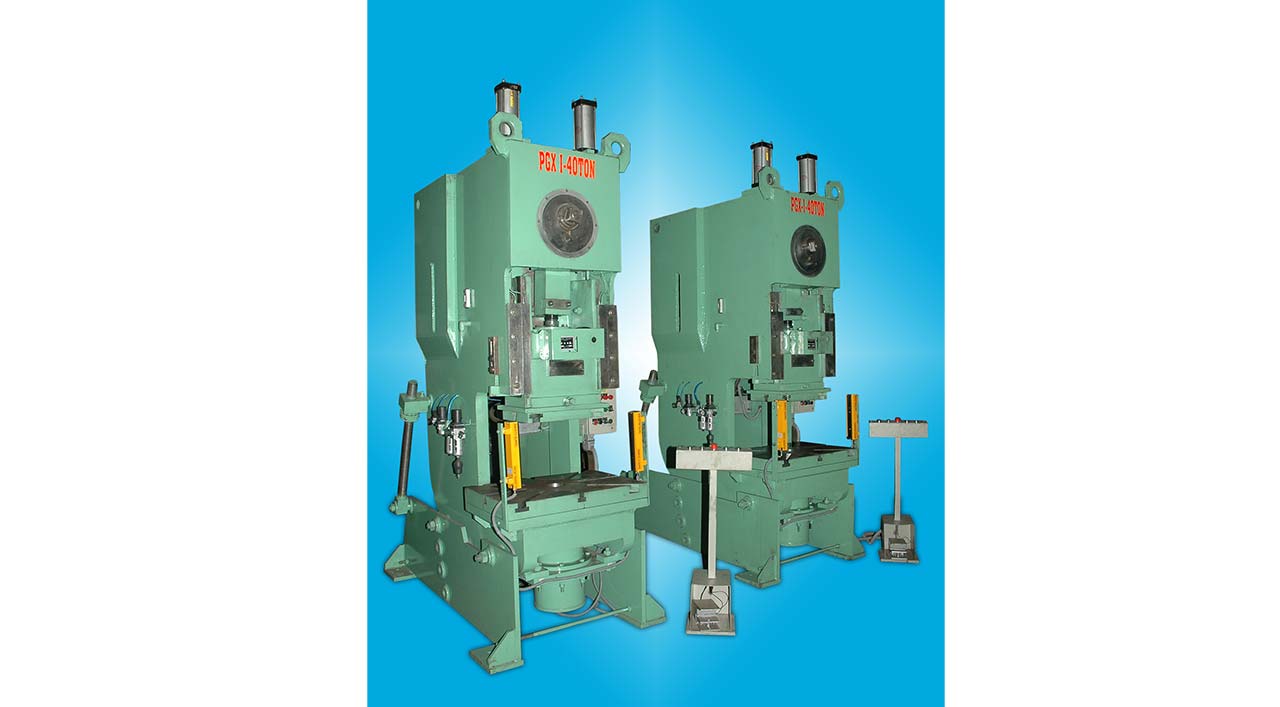

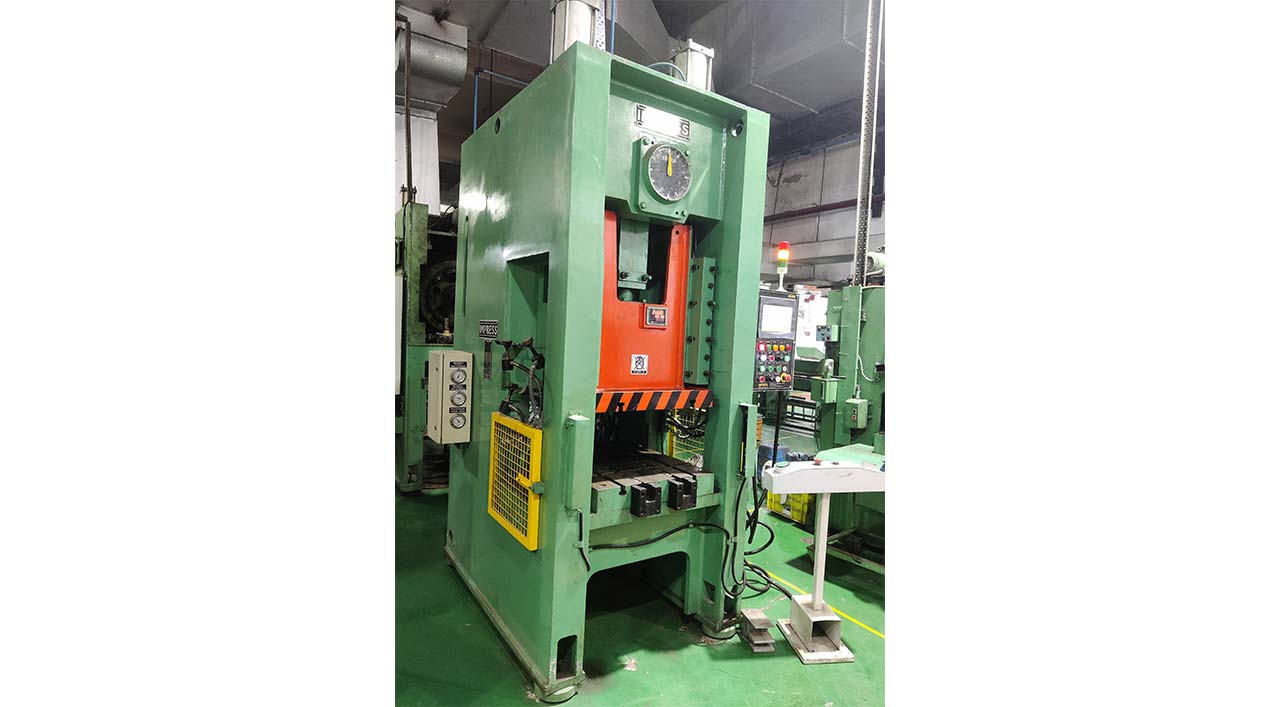

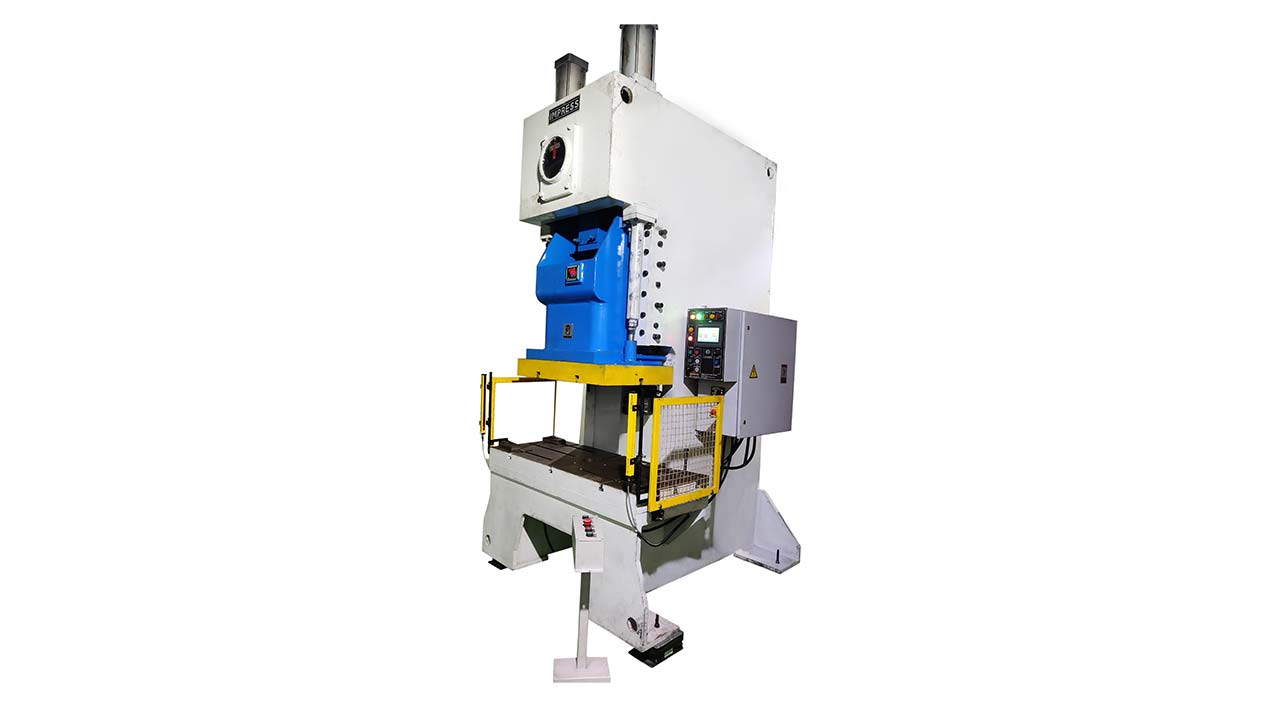

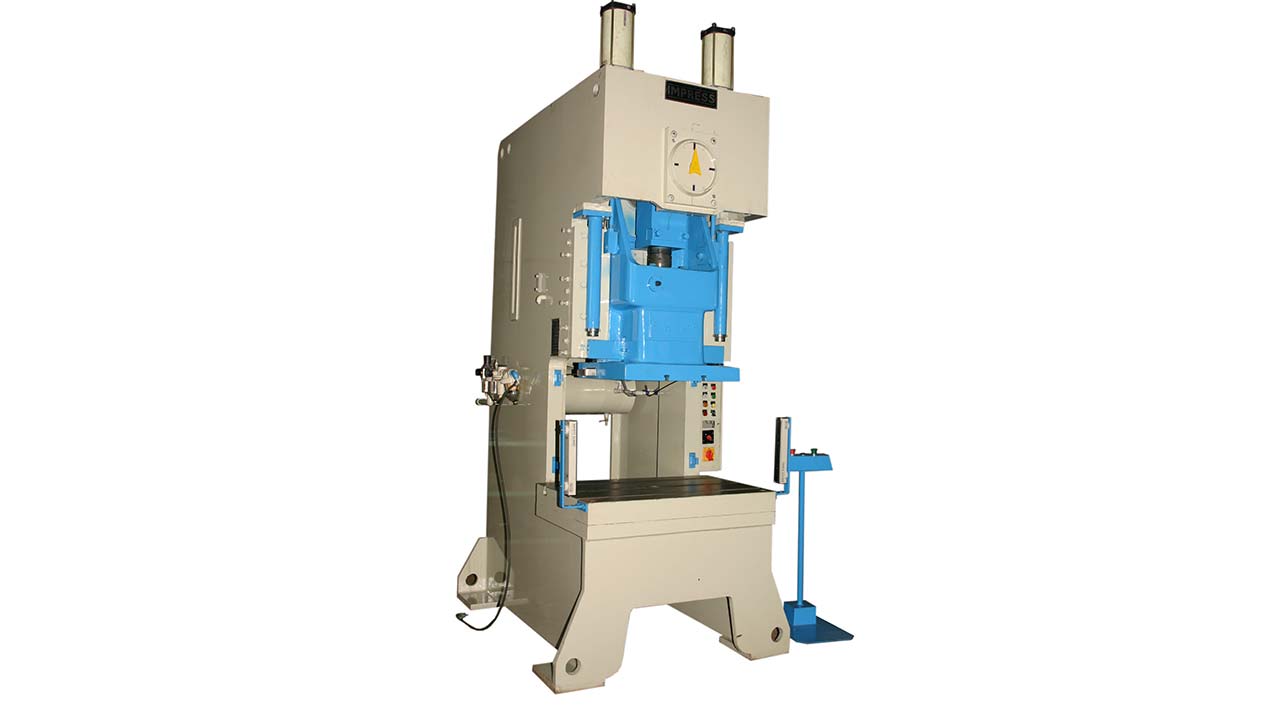

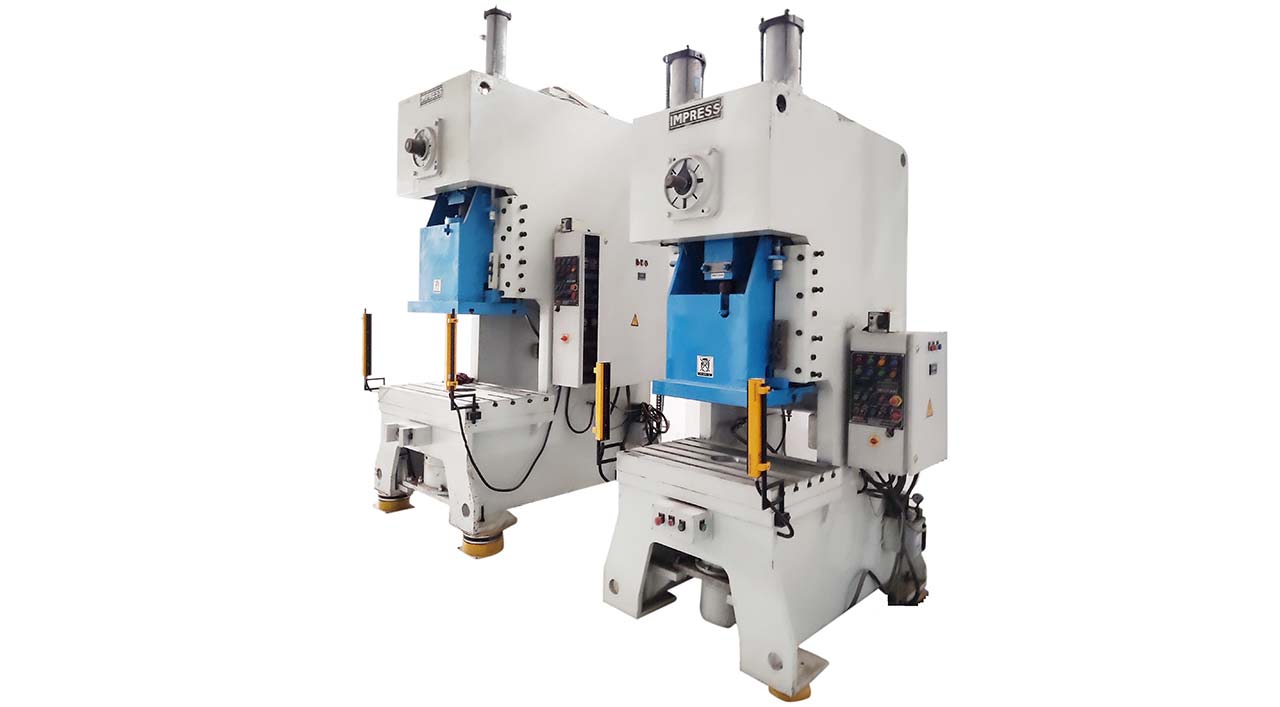

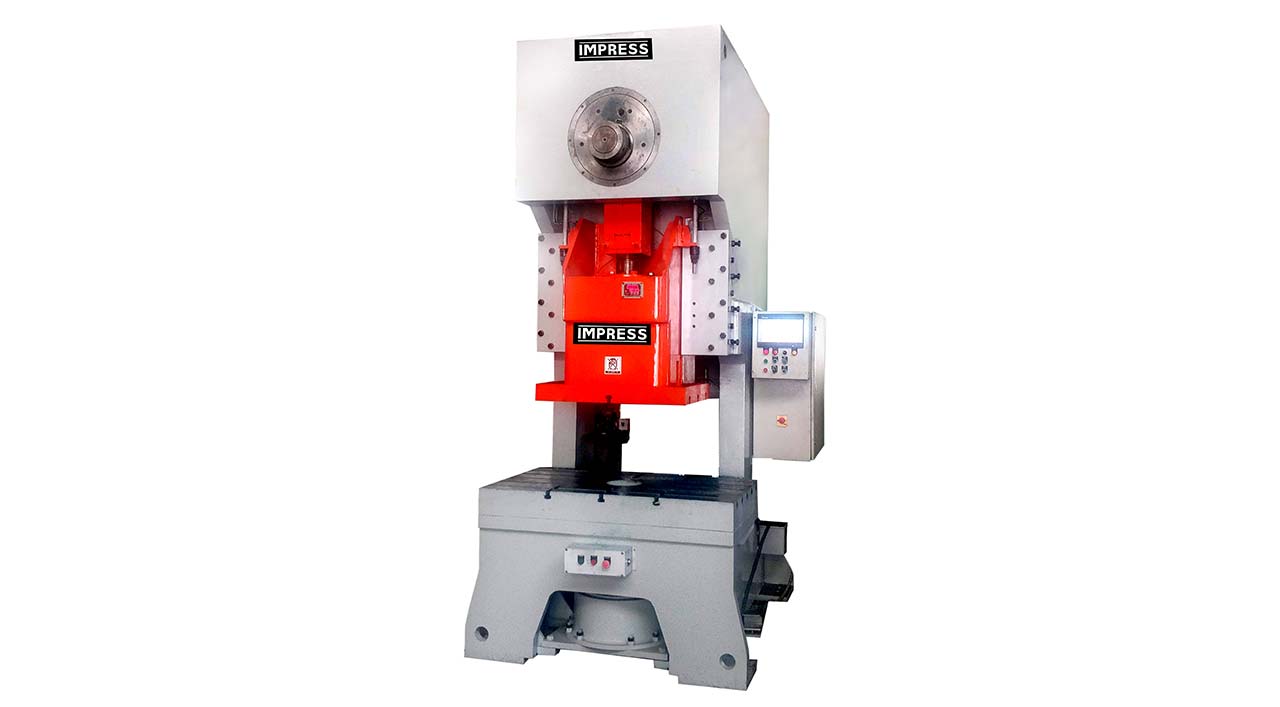

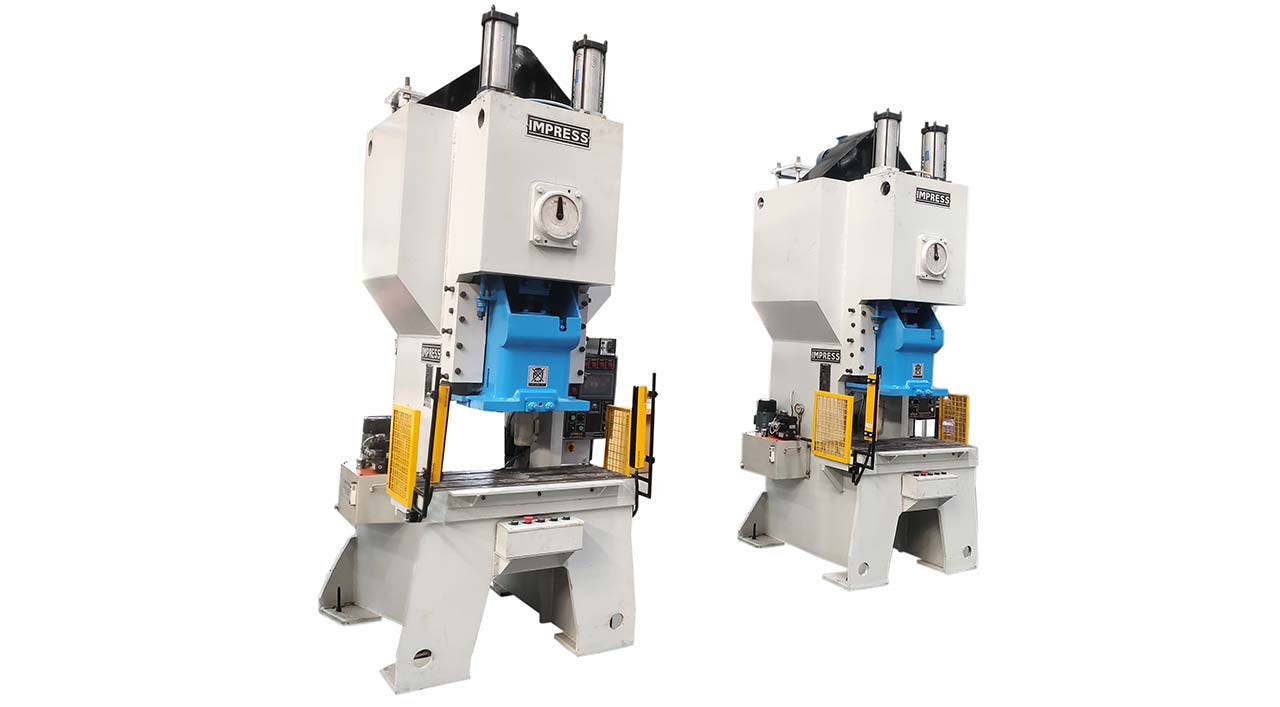

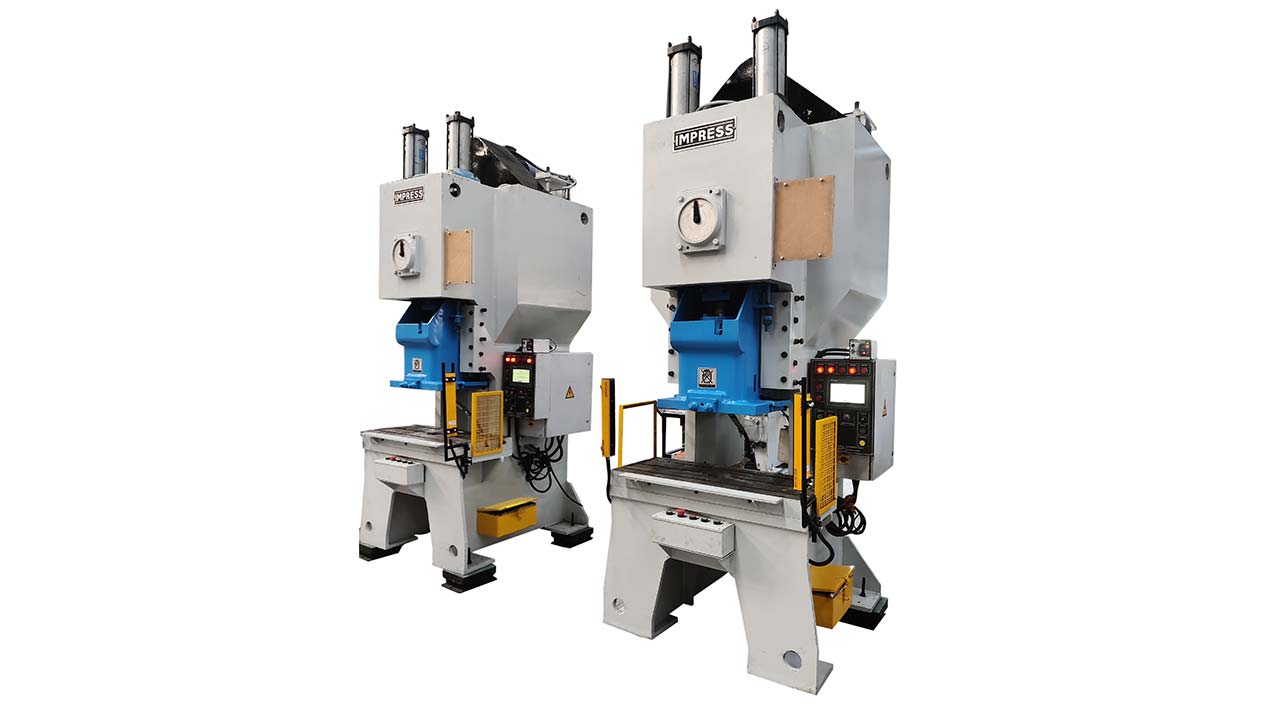

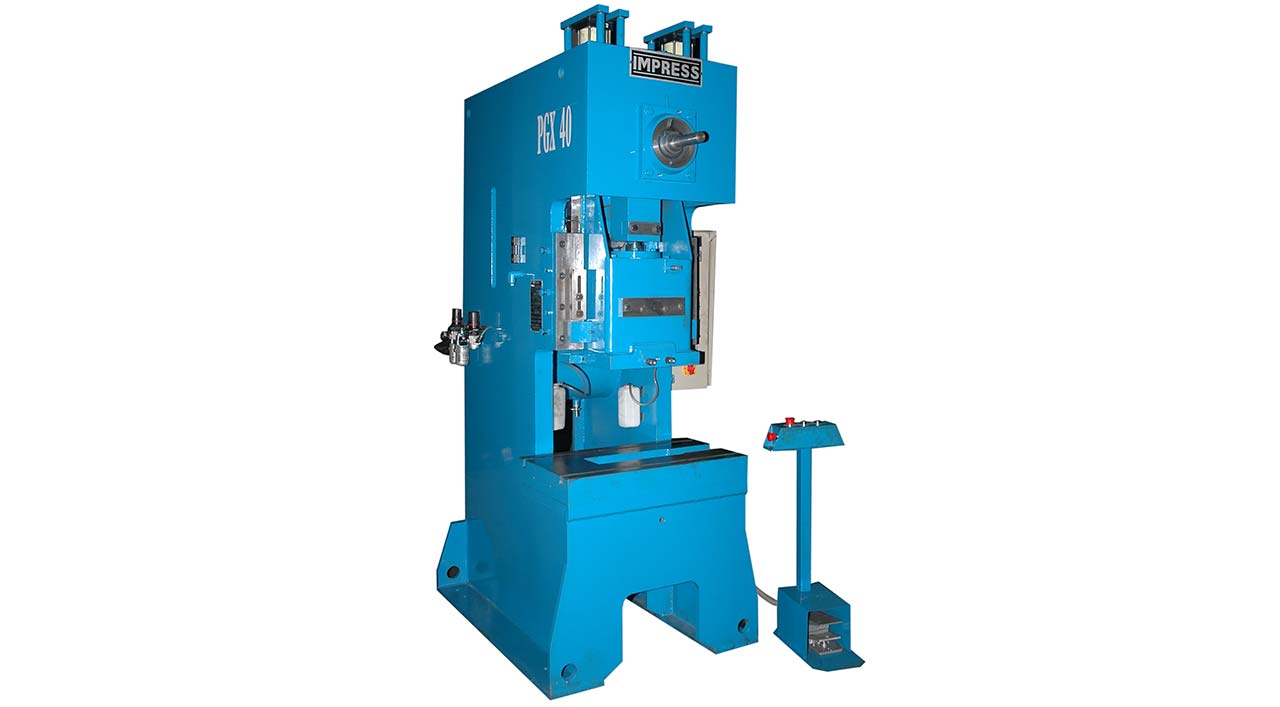

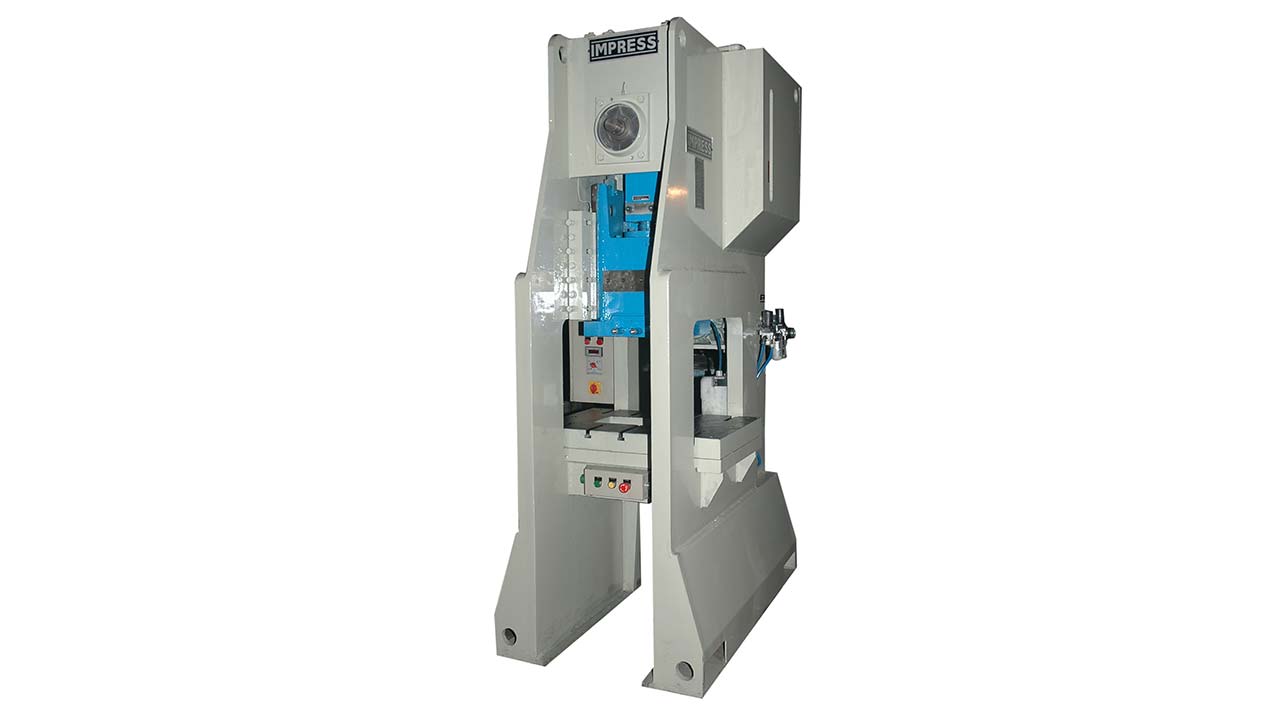

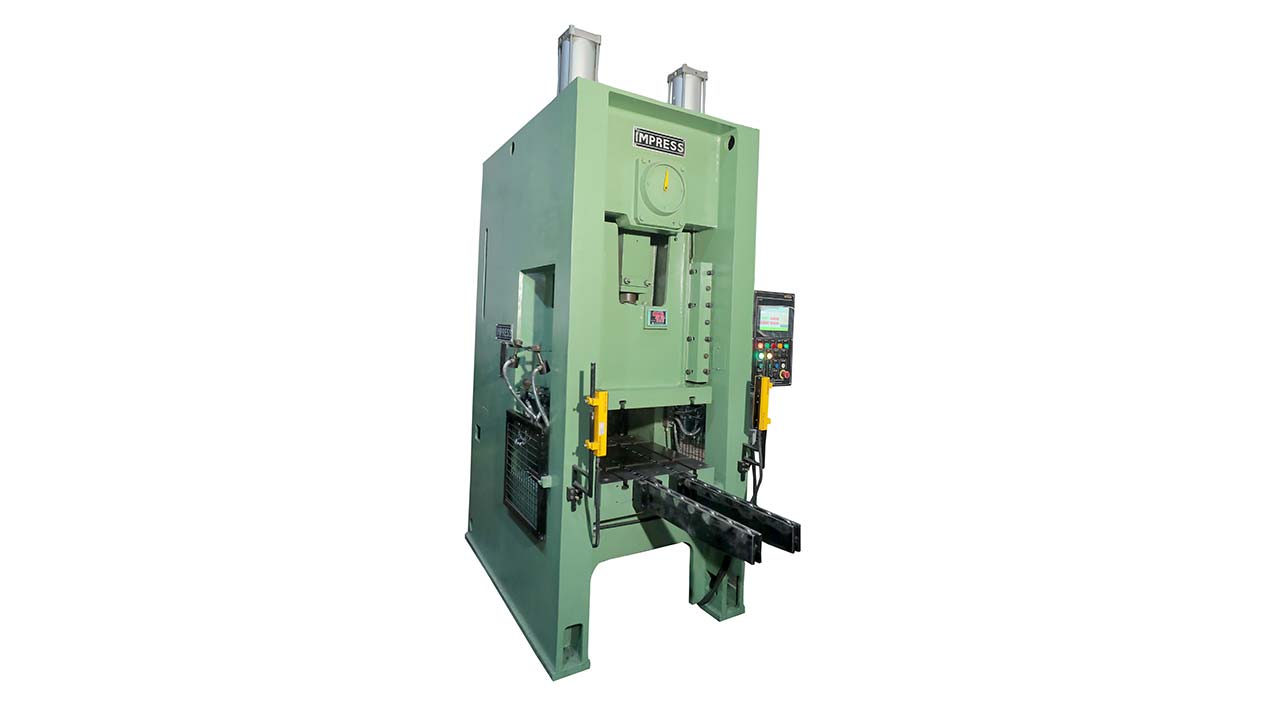

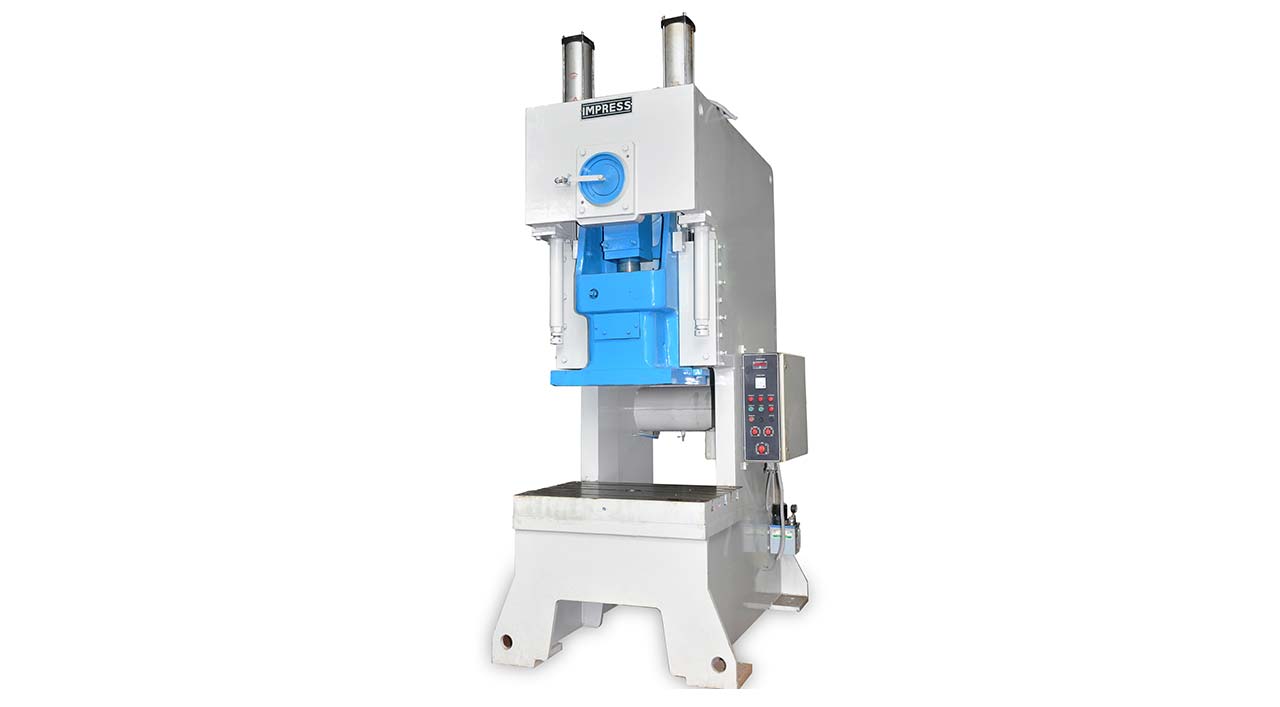

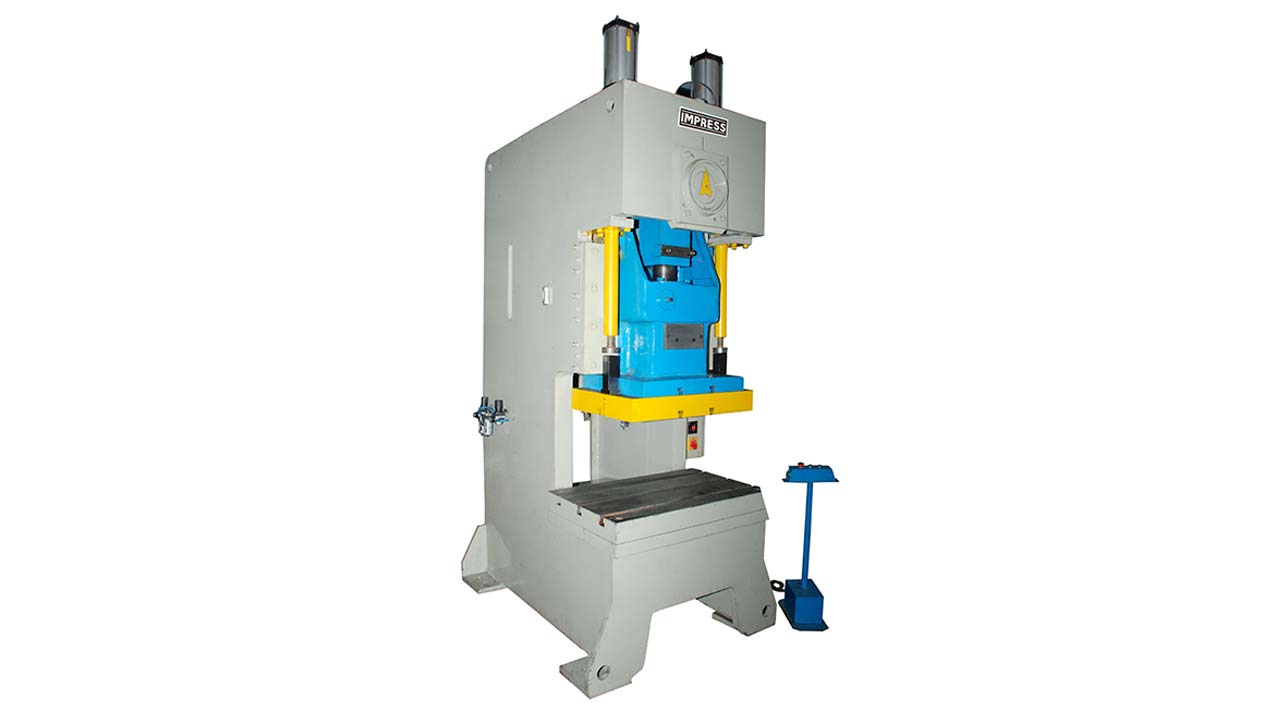

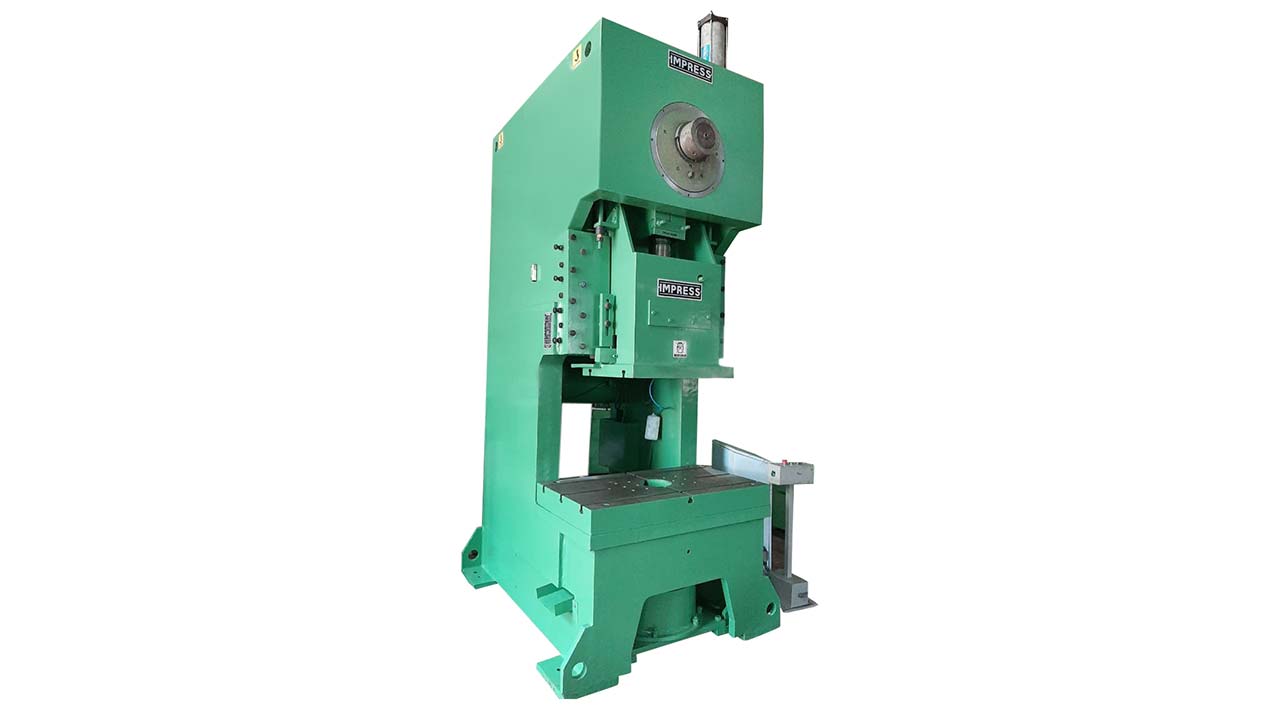

IMPRESS : X Shaft Power Presses
Description
The X-Shaft Power Press is a high-performance machine designed for heavy-duty metal stamping and forming. It ensures superior stability, accuracy, and efficiency for various industrial applications.
- Flat Gibs ensures balance loading, more guiding surface and accurate slide adjustment
- Extra long ram with exceptionally generous die mounting space.
- Extra rugged welded steel frame one piece construction Compact press controls.
- Gear runs in oil bath-reduces noise and vibration. Fully enclosed drive.
| Salient Features | U.O.M. | PGX-20 | PGX-32 | PGX-40 | PGX-50 | PGX-63 | PGX-80 | PGX-100 |
|---|---|---|---|---|---|---|---|---|
| Total Capacity of the Machine | Tonnage | 20 Tons | 32 Tons | 40 Tons | 50 Tons | 63 Tons | 80 Tons | 100 Tons |
| Force | kN | 200 | 320 | 400 | 500 | 630 | 800 | 1000 |
| Rated distance before BDC (G) | mm | 3.0 | 3.5 | 4.0 | 4.0 | 5.0 | 5.0 | 5.0 |
| Rated distance before BDC (UG) | mm | 2.0 | 2.2 | 2.2 | 2.5 | 2.5 | 2.5 | 2.5 |
| Stroke Length (Fixed) | mm | 50 | 63 | 80 | 90 | 100 | 112 | 125 |
| Stroke Length (Adjustable) | mm | 8 ~ 50 | 8 ~ 63 | 8 ~ 90 | 8 ~ 90 | 8 ~ 100 | 8 ~ 112 | 8 ~ 125 |
| Shut Height Over Bolster | mm | 250 | 280 | 300 | 250 | 315 | 400 | 415 |
| Table Area (FB x LR) | mm | 355 x 560 | 400 x 630 | 450 x 800 | 450 x 900 | 560 x 900 | 630 x 1000 | 630 x 1000 |
| Opening in Bed/ Bolster | Dia | Ø 120 | Ø 125 | Ø | Ø | Ø | Ø | Ø |
| Depth of Throat | mm | 185 | 210 | 230 | 230 | 290 | 325 | 325 |
| Bolster Thickness | mm | 70 | 75 | 75 | 90 | 90 | 90 | 100 |
| Slide Face (FB x LR) | mm | 200 x 300 | 250 x 350 | 350 x 400 | 375 x 500 | 400 x 500 | 450 x 600 | 450 x 600 |
| Slide Adjustment | mm | 50 | 63 | 70 | 70 | 70 | 80 | 80 |
| Strokes per Minute (G) | SPM | 75 | 70 | 65 | 60 | 60 | 50 | 45 |
| Strokes per Minute (UG) | SPM | 150 | 140 | 130 | 120 | 120 | 105 | 100 |
| Overload Safety | Shear Plate | Shear Plate | Shear Plate | Shear Plate | Shear Plate | Shear Plate | Shear Plate | |
| Flywheel Energy (G) | kJ | 4.0 | 4.4 | 8.0 | 13.0 | 17.0 | 20.0 | 25.0 |
| Flywheel Energy (UG) | kJ | 2.5 | 3.0 | 4.6 | 6.5 | 8.0 | 10 | 12.5 |
| Working Height | mm | 800 | 800 | 800 | 800 | 900 | 900 | 800 |
| Lubrication Pump | Automatic | Automatic | Automatic | Automatic | Automatic | Automatic | Automatic | |
| Electric Motor (G) | HP x rpm | 2.0 x 1440 | 3.0 x 1440 | 5.0 x 1440 | 5.0 x 1440 | 7.0 x 1440 | 7.0 x 1440 | 10.0 x 1440 |
| Electric Motor (UG) | HP x rpm | 2.0 x 990 | 3.0 x 990 | 5.0 x 960 | 5.0 x 990 | 7.0 x 990 | 7.0 x 990 | 10.0 x 990 |
| Press Operations | PLC enabled | PLC enabled | PLC enabled | PLC enabled | PLC enabled | PLC enabled | PLC enabled | |
| Air Pressure | ATM | 5.5 kg/cm² | 5.5 kg/cm² | 5.5 kg/cm² | 5.5 kg/cm² | 5.5 kg/cm² | 5.5 kg/cm² | 5.5 kg/cm² |
| Die Cushion Model | Model | DC-22 | DC-32 | DC-42 | DC-52 | DC-62 | DC-82 | DC-102 |
| Force | kN | 20 | 20 | 44 | 50 | 70 | 100 | 100 |
| Stroke Length | mm | 35 | 35 | 50 | 50 | 60 | 60 | 50 |
| Reqd Air Pressure | ATM | 7 | 7 | 7 | 7 | 7 | 60 | 7 |
| Pressure Pad Area | mm | 260 x 180 | 290 x 200 | 335 x 230 | 380 x 260 | 380 x 260 | 475 x 330 | 475 x 330 |
| Salient Features | U.O.M. | PGX-125 | PGX-160 | PGX-200 | PGX-250 | PGX-315 |
|---|---|---|---|---|---|---|
| Total Capacity of the Machine | Tonnage | 125 Tons | 160 Tons | 200 Tons | 250 Tons | 315 Tons |
| Force | kN | 1250 | 1600 | 2000 | 2500 | 3150 |
| Rated distance before BDC (G) | mm | 6.3 | 6.3 | 7.0 | 8.0 | 10.0 |
| Stroke Length (Fixed) | mm | 160 | 160 | 200 | 200 | 200 |
| Shut Height Over Bolster | mm | 450 | 500 | 515 | 550 | 460 |
| Table Area (FB x LR) | mm | 710x1120 | 710x1120 | 800x1250 | 800x1250 | 900x1450 |
| Opening in Bed/ Bolster | Dia | Ø180 | Ø180 | Ø200 | Ø200 | Ø250 |
| Depth of Throat | mm | 360 | 360 | 410 | 410 | 460 |
| Bolster Thickness | mm | 112 | 120 | 150 | 150 | 175 |
| Slide Face (FB x LR) | mm | 600 x 710 | 600 x 710 | 800x900 | 850x950 | 800x1200 |
| Slide Adjustment | mm | 125 | 125 | 125 | 125 | 125 |
| Strokes per Minute (G) | SPM | 40 | 40 | 40 | 35 | 35 |
| Overload Safety | Shear Plate | Shear Plate | Shear Plate | Shear Plate | Shear Plate | |
| Flywheel Energy (G) | kJ | 32.0 | 55.0 | 70.0 | 80.0 | 120.0 |
| Working Height | mm | 800 | 800 | 800 | 900 | 900 |
| Lubrication Pump | Motorized | Motorized | Motorized | Motorized | Motorized | |
| Electric Motor (G) | HP x rpm | 15x1440 | 20x1440 | 20x1440 | 25x1440 | 30x1440 |
| Press Operations | PLC enabled | PLC enabled | PLC enabled | PLC enabled | PLC enabled | |
| Air Pressure | ATM | 5.5 kg/cm² | 5.5 kg/cm² | 5.5 kg/cm² | 5.5 kg/cm² | 5.5 kg/cm² |
| Die Cushion Model | Model | 3 DC-144 | 3DC-144 | 3DC-144 | 3DC-164 | C-02-30-125 |
| Force | kN | 200 | 200 | 200 | 270 | 300 |
| Stroke Length | mm | 75 | 75 | 100 | 100 | 100 |
| Reqd Air Pressure | ATM | 7 | 7 | 7 | 7 | 7 |
| Pressure Pad Area | mm | 535x425 | 535x425 | 425x600 | 425x600 | 520x850 |
