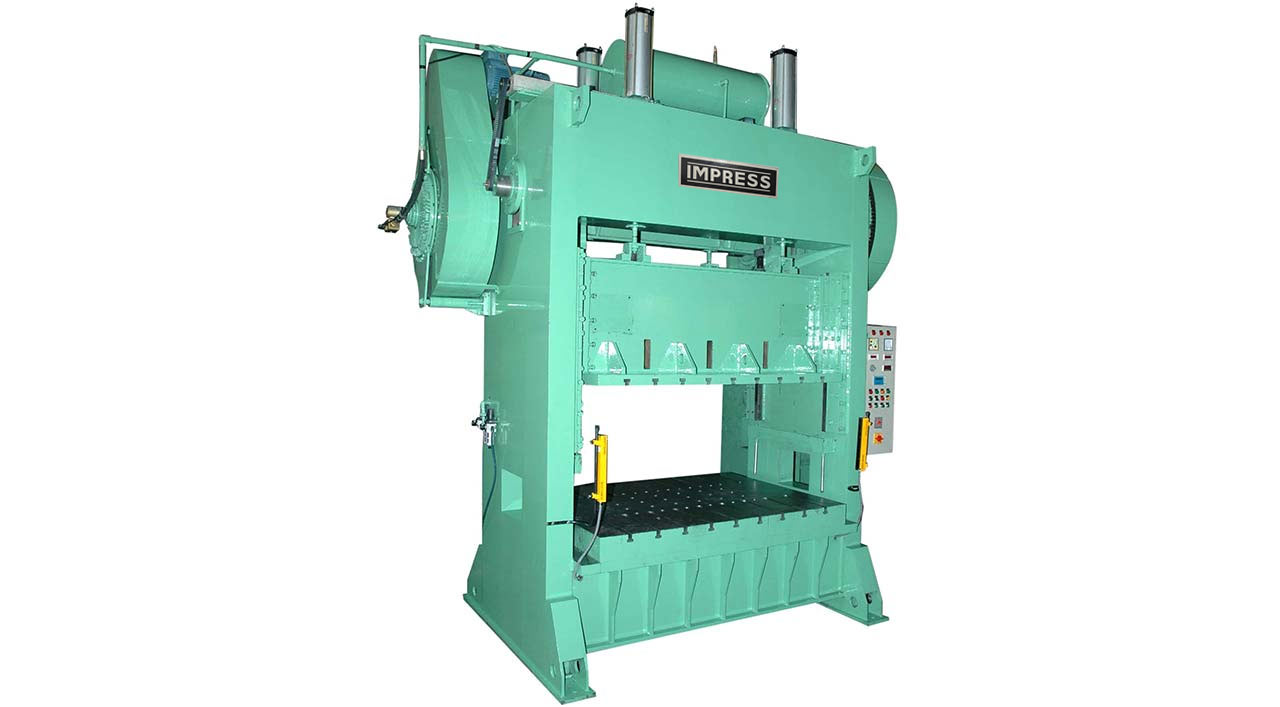

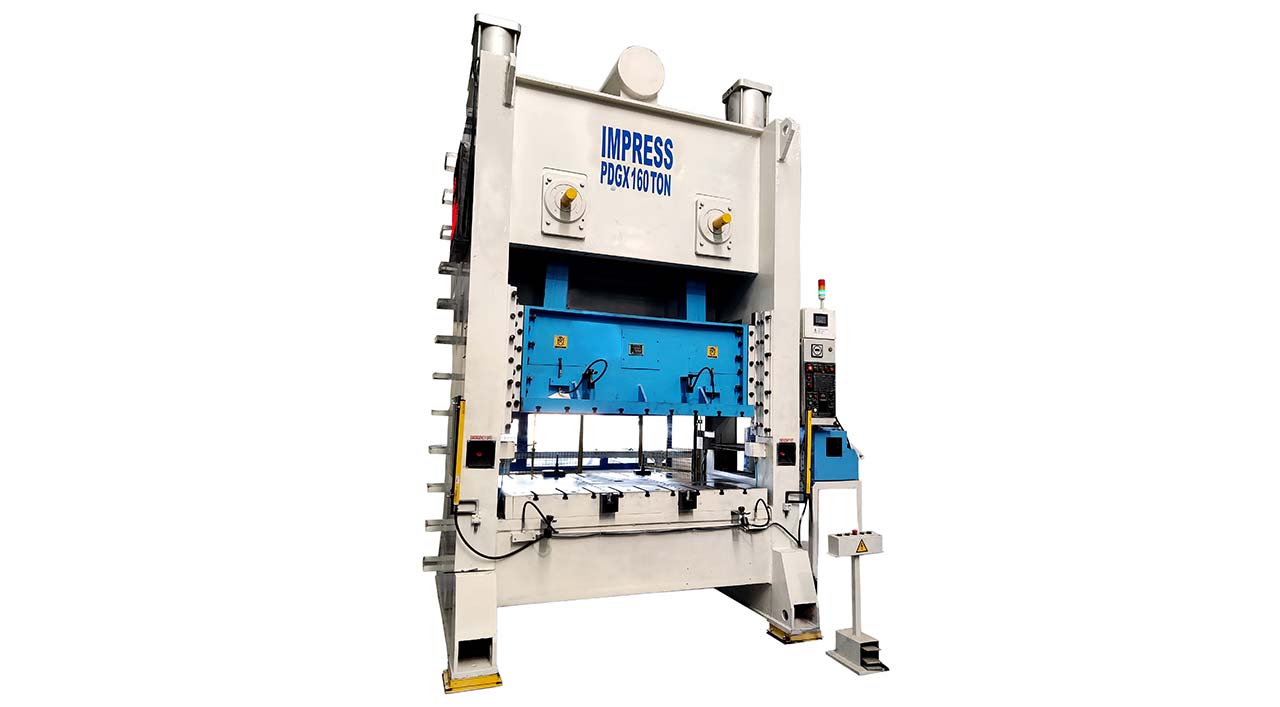

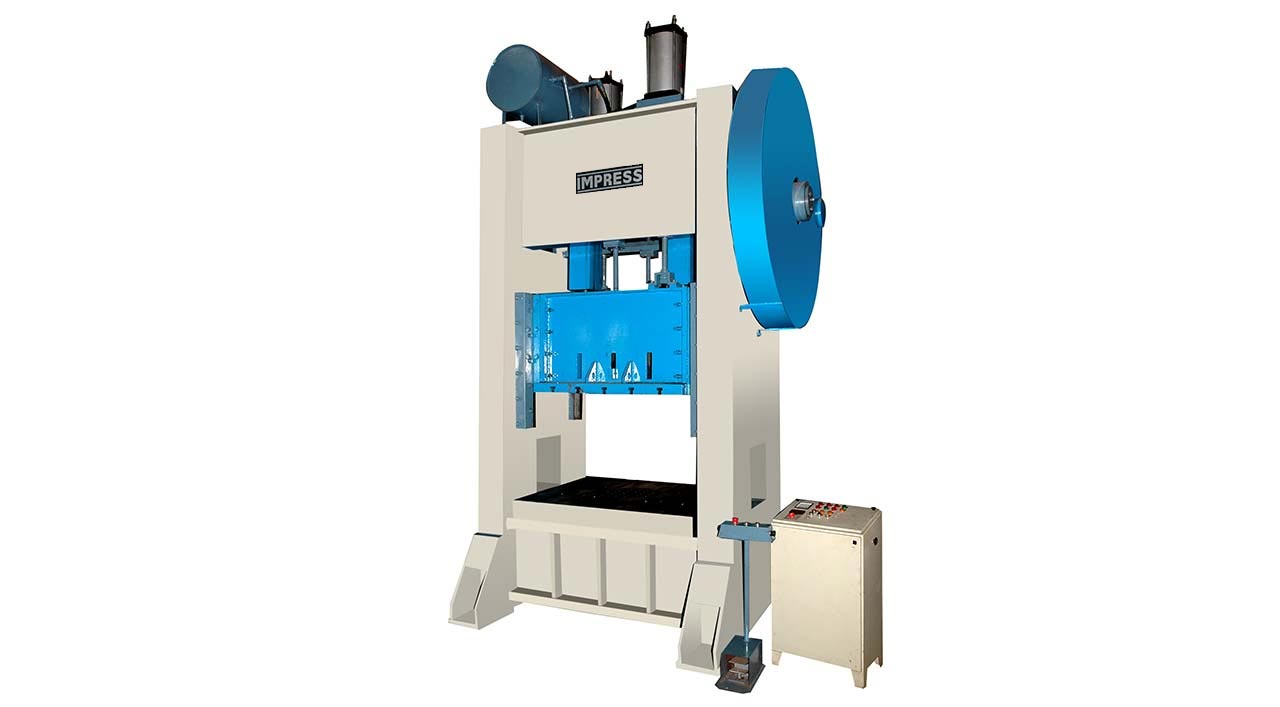

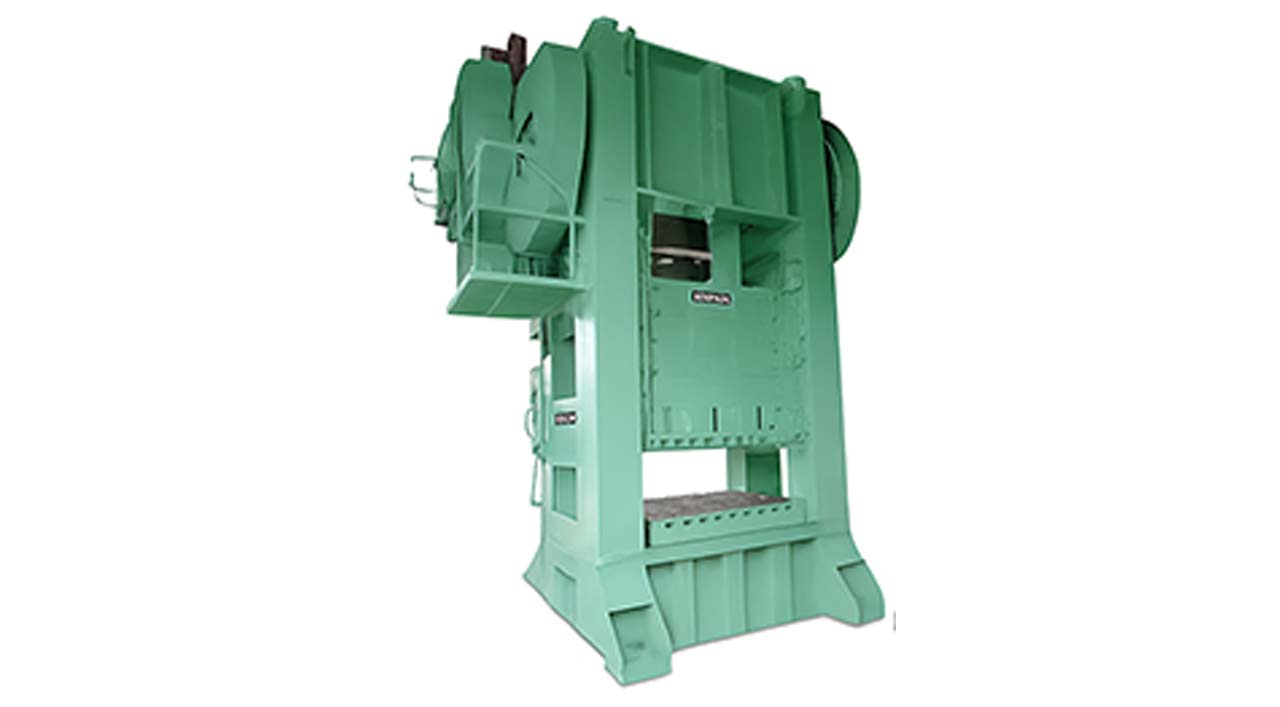

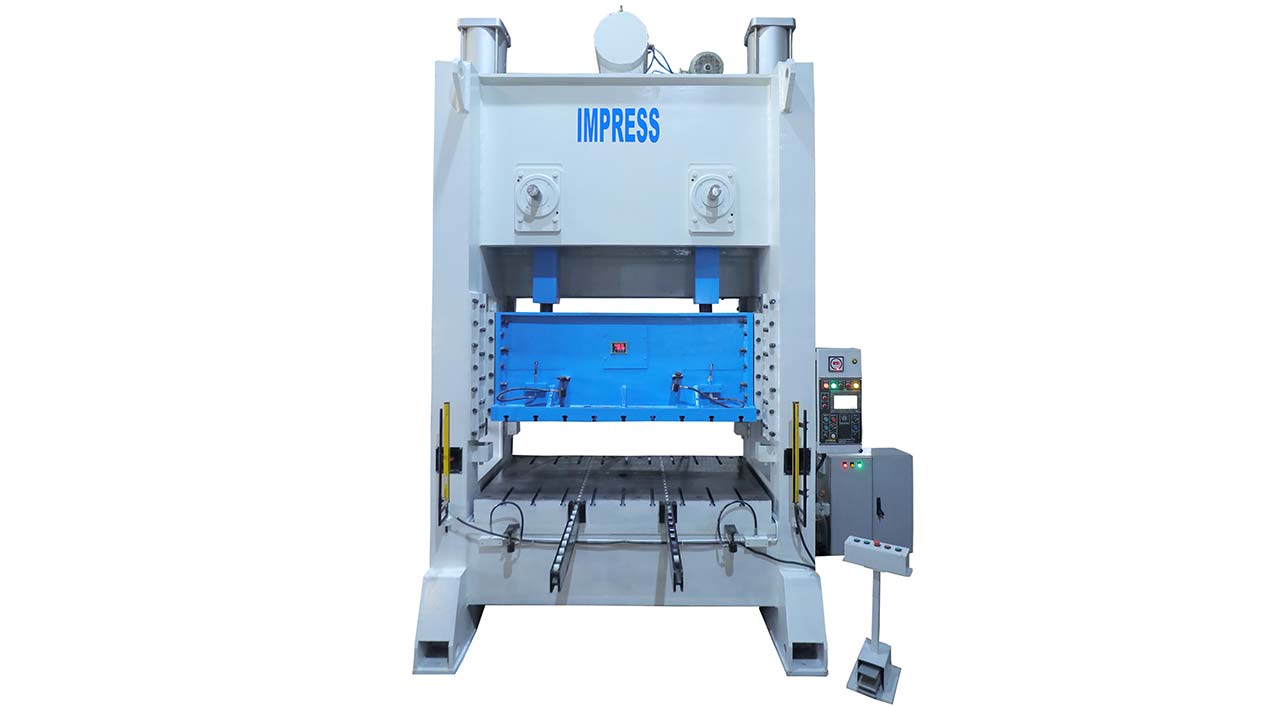

IMPRESS : H Frame Double Point Power Presses

Description

Technical Specifications for ‘IMPRESS’ make H- Frame Double Point Power Presses 100 Tons ~ 500 Tons

Straight Sided Two- Point Crank Presses for applications such as Punching, Blanking, Drawing, Embossing, Bending & Forming

Heavy Duty Straight-Sided Double Column with Double Suspension, 100 to 500 Tons, as per enclosed specifications.

Specifications

Salient Features	U.O.M.	PDG-100	PDG-160	PDG-200	PDG-250	PDG-315	PDG-500
Total Capacity of the Machine	Tonnage	100	160	200	250	315	500
Suspension	Point	Two	Two	Two	Two	Two	Two
Rated Distance Before BDC	mm	5	6.3	7	8	10	12
Stroke Length (Fixed)	mm	110	150	160	200	250	300
Shut Height Over Bolster (SDAU)	mm	350	400	450	500	550	550
Table Area (FB x LR)	mm	800 x 1200	1000 x 1600	1000 x 1800	1200 x 2000	1300 x 2100	1400 x 2200
Bolster Thickness	mm	80	100	125	150	175	200
Slide Face (FB x LR)	mm	550 x 1000	800 x 1400	800 x 1600	1000 x 1800	1100 x 1900	1200 x 2000
Slide Guideways (Box-Type)		8-Guide	8-Guide	8-Guide	8-Guide	8-Guide	8-Guide
Slide Adjustment (Motorized)	mm	60	70	80	90	100	100
Strokes per Minute	SPM	55	45	40	30	25	20
Machine Overload Safety		Hydraulic Overload Protection & Release System	Hydraulic Overload Protection & Release System	Hydraulic Overload Protection & Release System	Hydraulic Overload Protection & Release System	Hydraulic Overload Protection & Release System	Hydraulic Overload Protection & Release System
Operator's Hand Safety		Safety Sensors - Photo Electric Guard	Safety Sensors - Photo Electric Guard	Safety Sensors - Photo Electric Guard	Safety Sensors - Photo Electric Guard	Safety Sensors - Photo Electric Guard	Safety Sensors - Photo Electric Guard
Opening in Column (HT x FB)	mm	300 x 300	300 x 300	300 x 300	300 x 300	300 x 350	300 x 350
Working Height	mm	800	800	900	900	900	1000
Lubrication Pump		Motorized	Motorized	Motorized	Motorized	Motorized	Motorized
Electric Motor	HP x rpm	10 x 1440	15 x 1440	20 x 1440	25 x 1440	30 x 1440	50 x 1440
Machine Controls		PLC with HMI	PLC with HMI	PLC with HMI	PLC with HMI	PLC with HMI	PLC with HMI
Counter Weight		Balancers Pneumatic	Balancers Pneumatic	Balancers Pneumatic	Balancers Pneumatic	Balancers Pneumatic	Balancers Pneumatic
Air Pressure	kg/cm²	5.5	5.5	5.5	5.5	5.5	5.5
