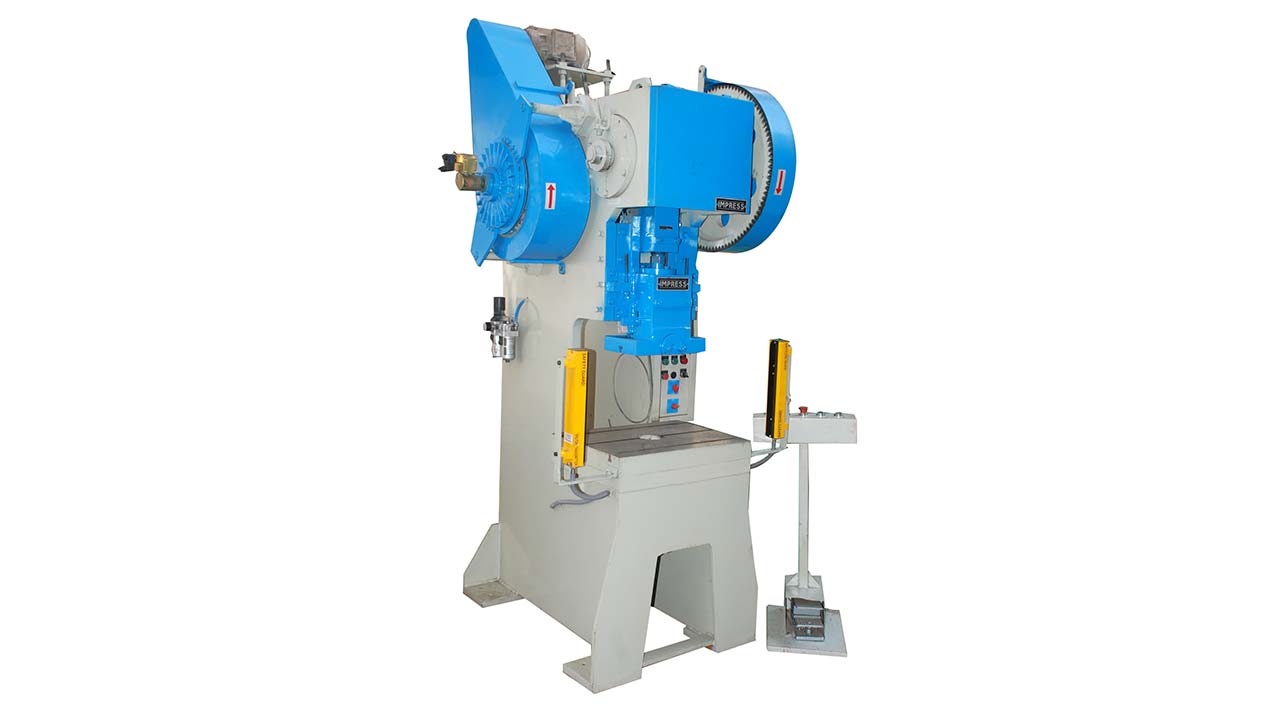

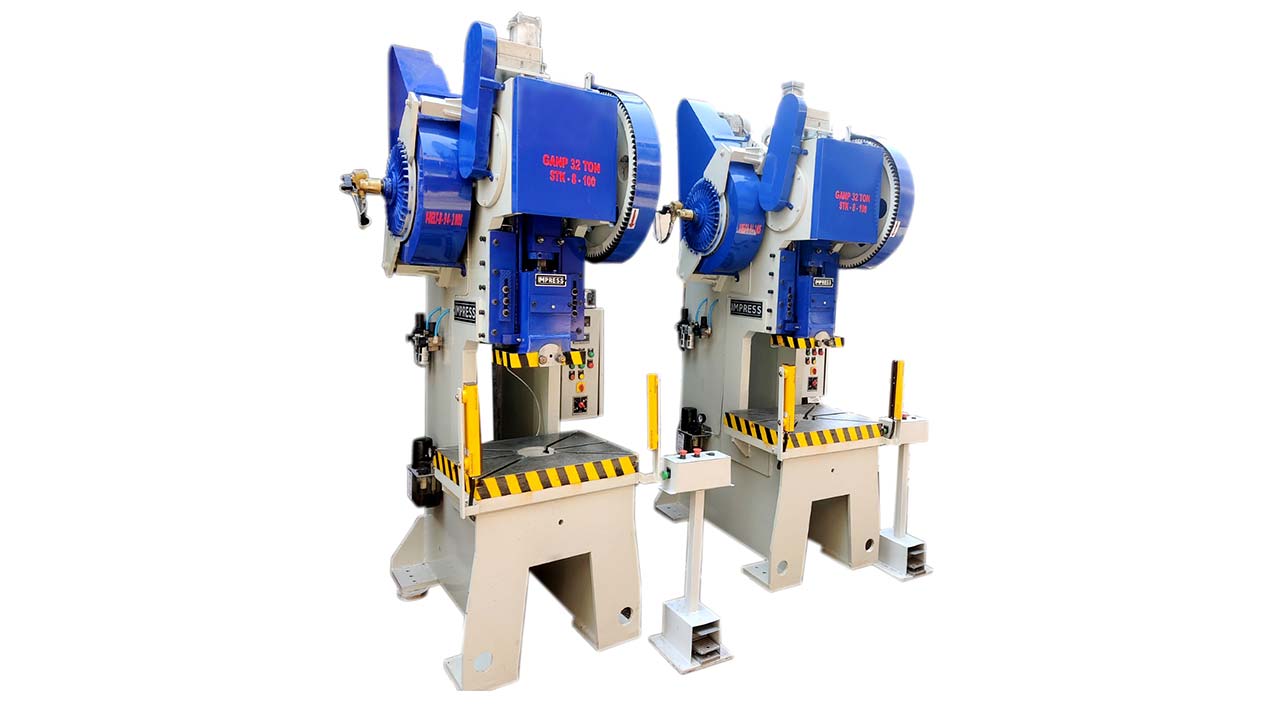

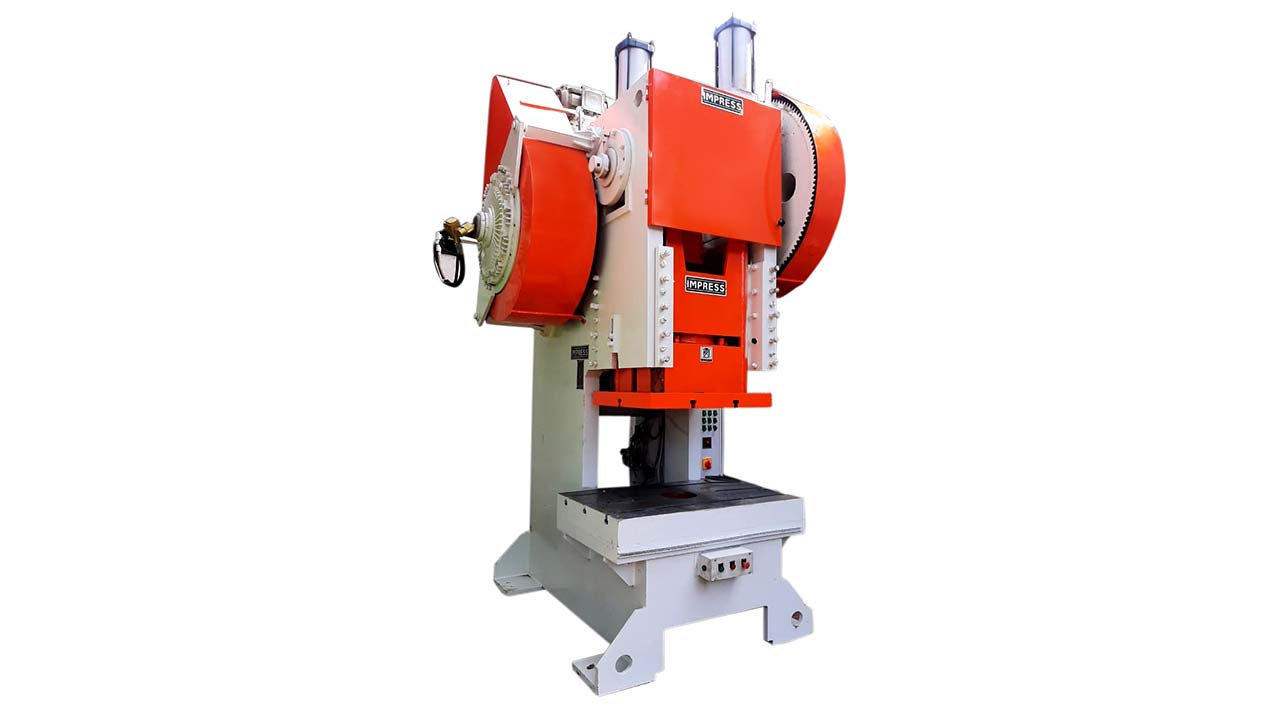

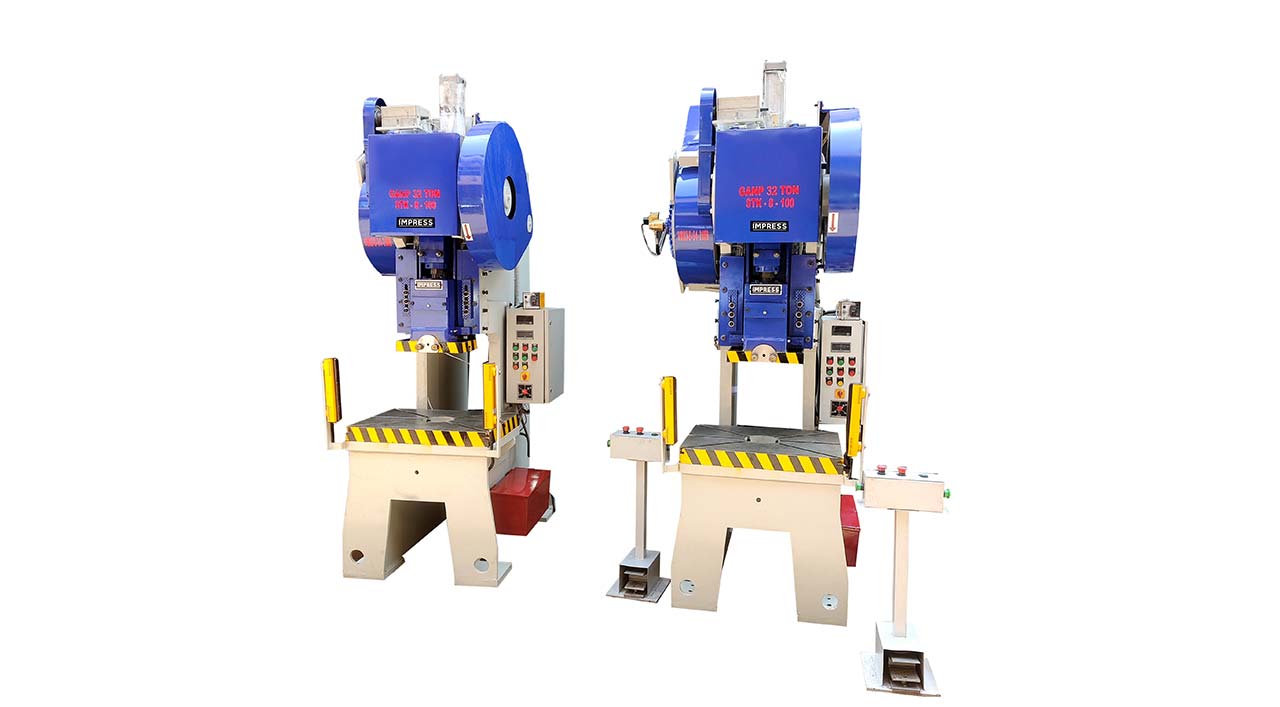

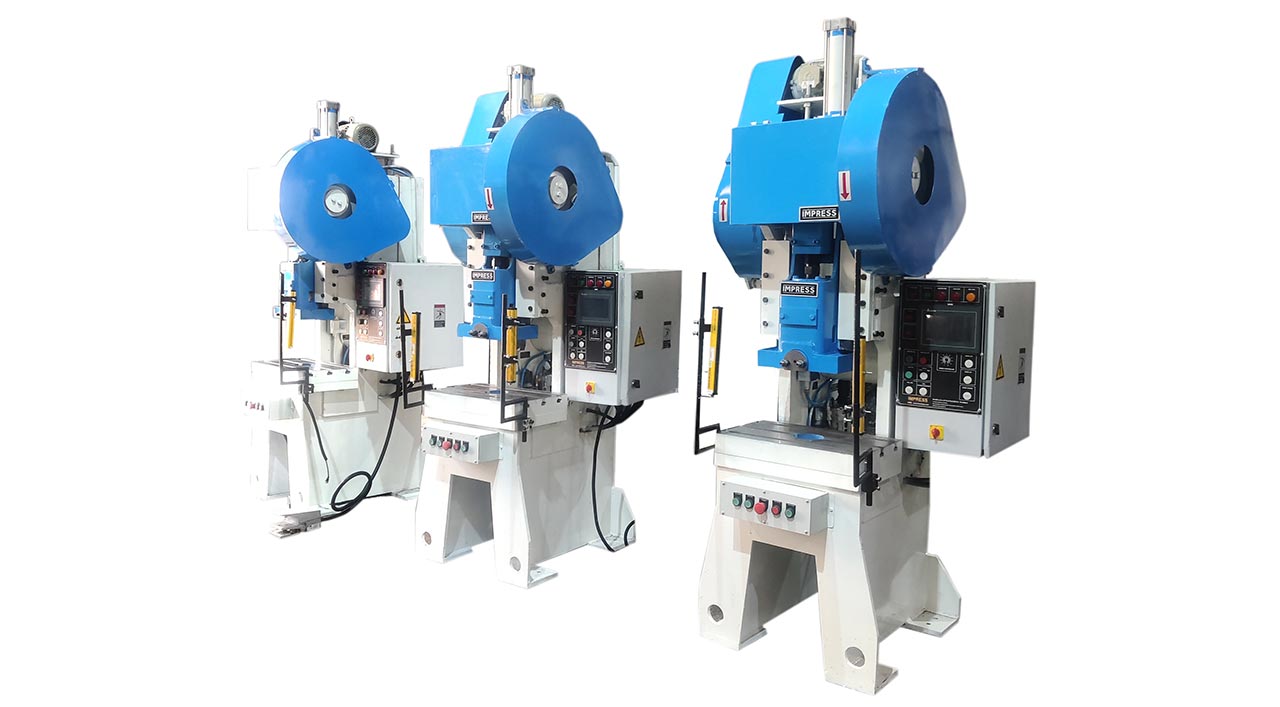

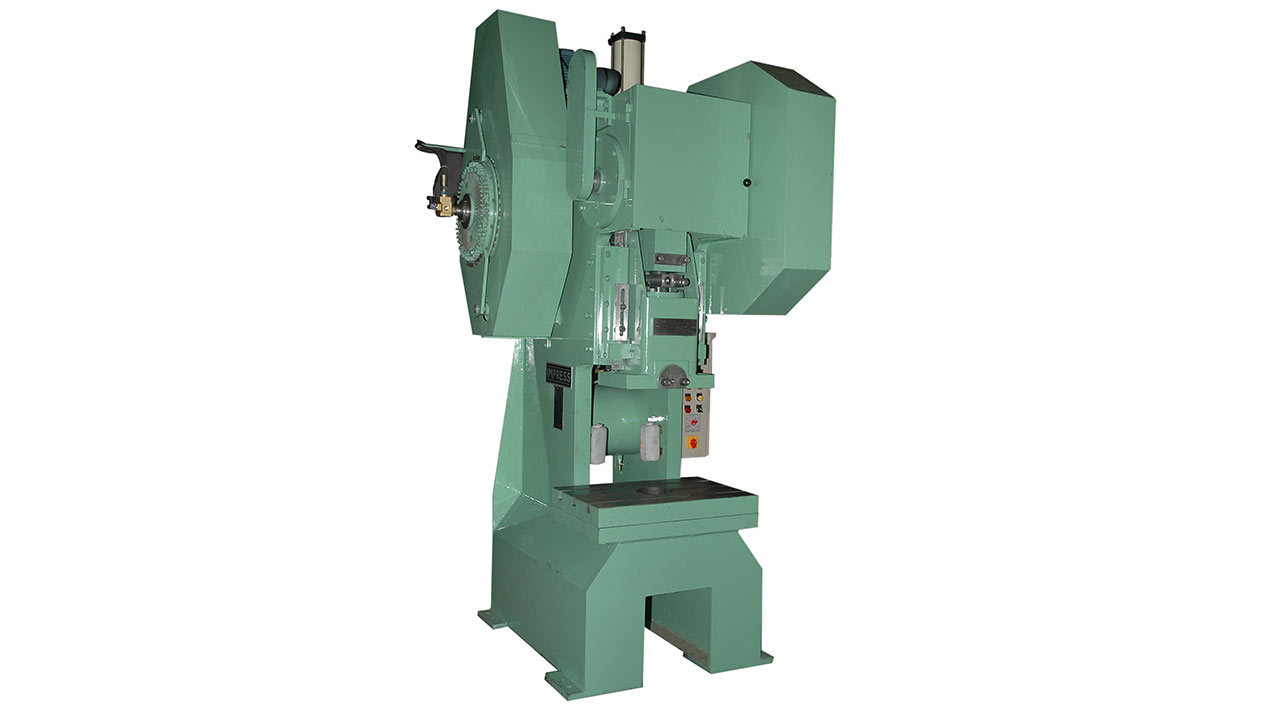

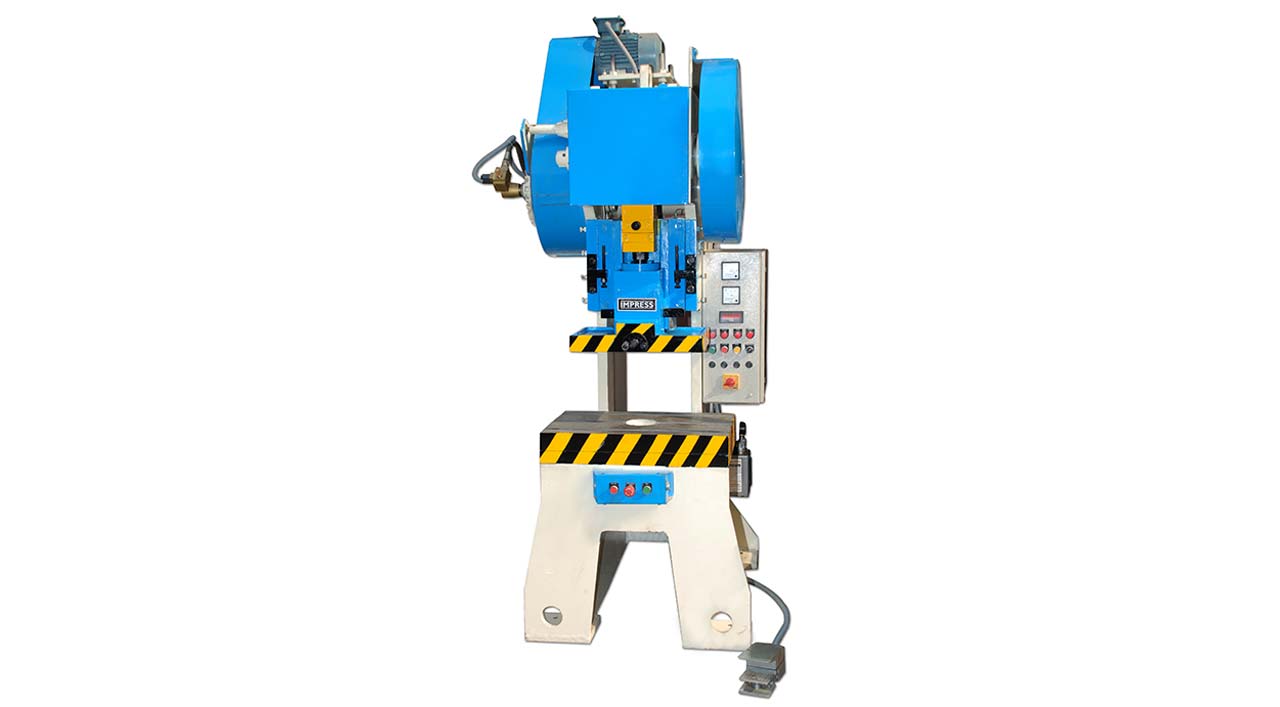

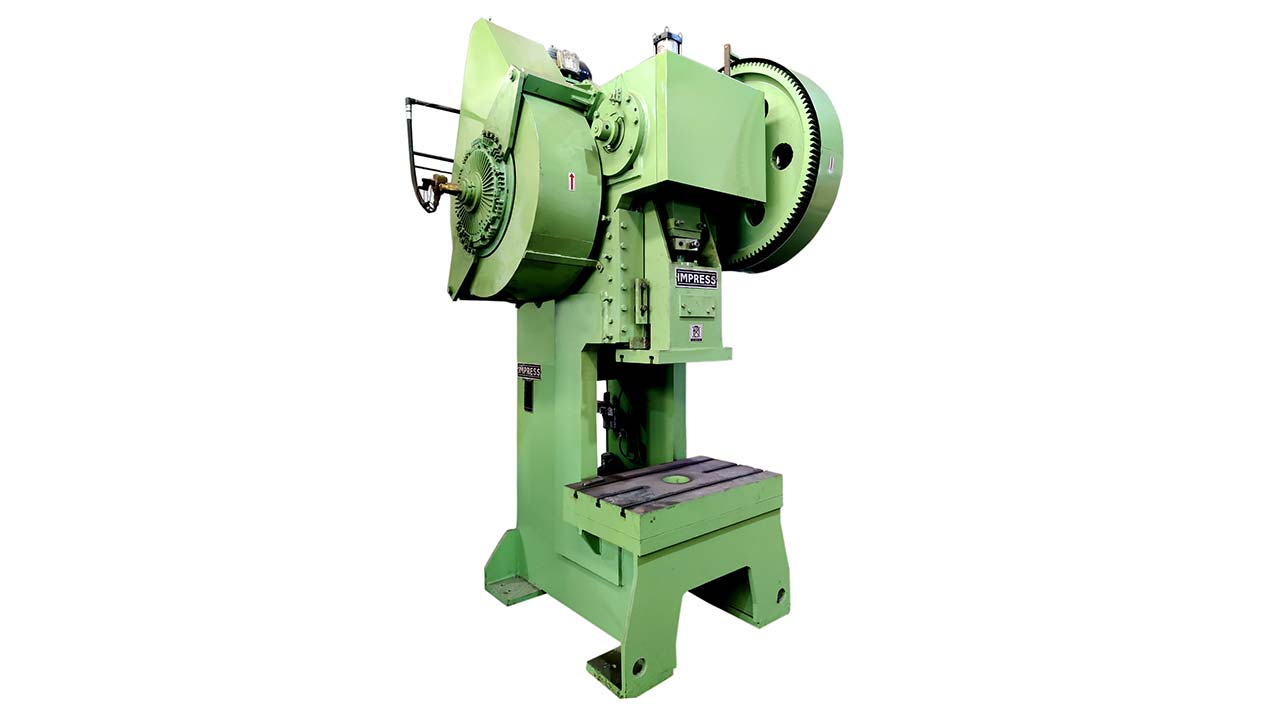

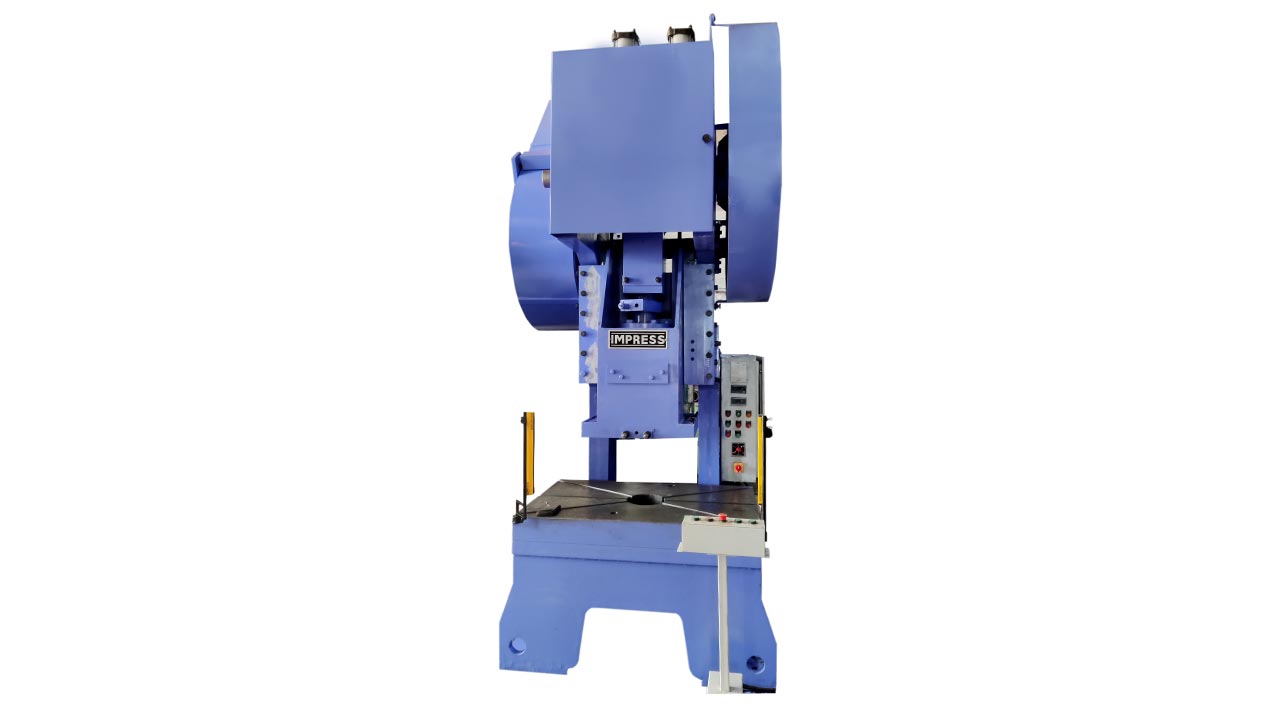

IMPRESS : Single Point Pneumatic Clutch Power Presses

Super Rigid Series Single Point Crank Presses
Welded steel construction with maximum rigidity & lowest deflection
Fabricated steel slide running in extra- long guides to ensure perfect alignment.
Combination clutch and brake with inter-locking of functions to ensure fail safe operations.

IM Series Specifications
Salient Features	U.O.M.	IM-10	IM-20	IM-32	IM-40	IM-50	IM-63	IM-80	IM-100	IM-160
Total Capacity of the Machine	Tonnage	10	20	32	40	50	63	80	100	160
Rated distance before BDC	mm	2.0	3.0	3.5	4.0	5.0	5.0	5.0	5.0	6.0
Stroke Length (Fixed)	mm	50	63	80	80	90	100	110	125	160
Shut Height Over Bolster	mm	200	250	280	300	300	315	330	355	415
Table Area (FB x LR)	mm	315 x 500	355 x 560	400 x 630	450 x 710	475 x 750	500 x 800	560 x 900	560 x 900	710 x 1100
Opening in Bed/ Bolster	Dia
Depth of Throat	mm	160	180	210	230	240	260	290	290	365
Bolster Thickness	mm	65	70	75	80	80	85	100	100	125
Slide Face (FB x LR)	mm	180 x 280	200 x 315	224 x 355	250 x 400	250 x 400	280 x 450	315 x 500	315 x 500	355 x 560
Slide Face Opening (Dia x Depth)	mm	32 x 60	40 x 75	40 x 75	50 x 85	50 x 85	50 x 85	50 x 85	50 x 85	60 x 90
Slide Adjustment	mm	50	50	50	63	63	63	80	80	100
Strokes per Minute (G)	SPM	70	63	56	50	50	45	40	40	35
Strokes per Minute (UG)	SPM	140	125	112	100	100	100	100	100	-
Overload Safety		Shear Plate
Flywheel Energy (Geared)	kJ	80.0	215.0	410.0	630.0	1250.0	1250.0	2200.0	2500.0	5000.0
Flywheel Energy (Ungeared)	kJ	40	120.0	215	315	630.0	630	1150	1250
Working Height	mm	800	800	800	800	800	800	900	900	900
Lubrication Pump		Motorized
Electric Motor (Geared)	HP x rpm	1 x 1440	2 x 1440	3 x 1440	5 x 1440	5 x 1440	7.5 x 1440	7.5 x 1440	10 x 1440	15 x 1440
Electric Motor (Ungeared)	HP x rpm	1 x 1000	2 x 1000	3 x 1000	5 x 1000	5 x 1000	7.5 x 1000	7.5 x 1000	10 x 1000	15 x 1000
